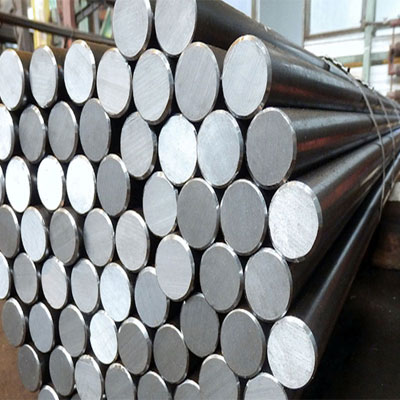

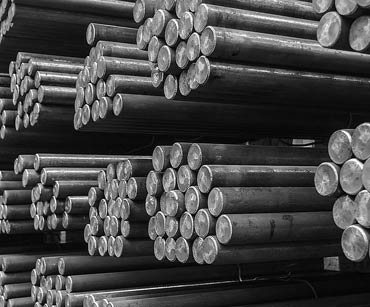

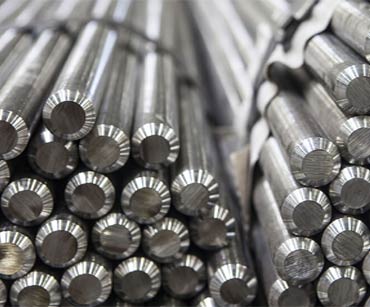

Round Bar

We also stock Bar, Hexagon, Square, Round products in various dimensions and grades. We stock Stainless Steel, Carbon and Alloy specialty steels supplied in the as rolled, annealed and normalized conditions. We offer cut to size and heat treatment through our service center.

  • User Industries : Chemicals, Fats, & Fertilizers
  • Sugar Mills & Distilleries
  • Ship Builders
  • Oil & Natural Gas Organization in terms of the specific materials
  • Cement Industries
  • Paper Industries
  • Technology, Finance & Personal.
  • Pumps, Petrochemicals

Bars & Rods Specification
Bar Standard ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647
Bar Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI
Round bar size Diameter: 3-~800mm
Hex Bar size 2-100mm A/F
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Square bar size 4 to 100mm
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Rectangular Bars Section 3.0 to 12.0mm thickness
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
ASTM A276 Type Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Threaded Bar Billet Size 1/2 to 495mm Diameter
Rectangular Size 33 x 30mm to 295 x 1066mm
Hex Bars Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
ASTM A276 Type Hollow Bar Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
SUS T-Bar Surface Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline
Rolled Stainless Steel Flat Bars Condition Hardened & tempered, annealed
ASTM A276 Type Cold Rolled Bar Technique Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod
Rod Processing Bar cutting to 650mm
Rounds Bar Form Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.
Our Stainless Steel Round bar conforms to NACE MR0175/ISO 15156

Processing Of Bars & Rods

Round bar Cutting

 Products cut include Round bars, Flat bars, Hex bars, Square bars, Tubing and Hollow bars, Pipe, Angles, channels, Beams and Tees. Thickness range is 1/16″ to 28″ diameter

Round bar Production Cutting

 We can provide production cutting for product diameters up to 4″. We utilize Amanda Production Equipment to achieve these precision cuts with tight tolerances.

Round bar Polishing

 Products polished included all tubular products, with OD & ID polishing available, Round bars, Square bars, Hex & Flat bars, Angles, Uneven Leg Angles, beams, and other shapes.

Bars & Rods Test Certificates :
  • Manufacturer Test Certificate
  • IBR Test Certificate
  • Laboratory Test Certificate from Govt. Approved Lab.
  • Under Third Party Inspection with Excise Gate Pass to avail Modvat benefit.

Some of Our Specialities that make us a profitable Business Partner for our clients are :
  • Customer focused approach
  • Superior quality products
  • Timely deliverices
  • Customize Size & Specification
  • Competitive Pricing

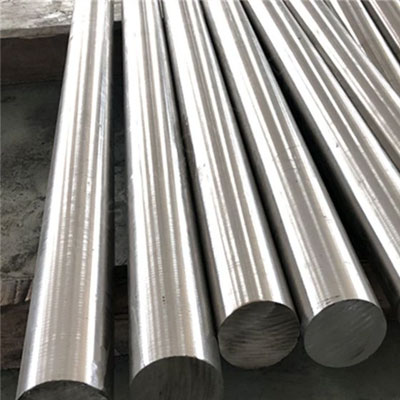

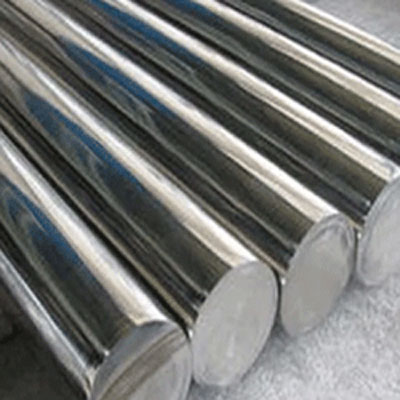

Stainless & Duplex Steel

Range: 3.17 MM TO 350 MM DIA
Stainless Steel :
ASTM / ASME SA 276 TP 304 , 304L , 309S , 309H, 310S , 316 , 316L , 316 TI , 317 , 321 , 347 , 410 , 420 , 430 ,431 , 440A ,B & C. , 446 ASTM / ASME SA 479 TP 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 321 , 321H , 347 , 347 H , 410, 430 ,431 & 444.
Duplex Steel :
ASTM / ASME SA 276 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

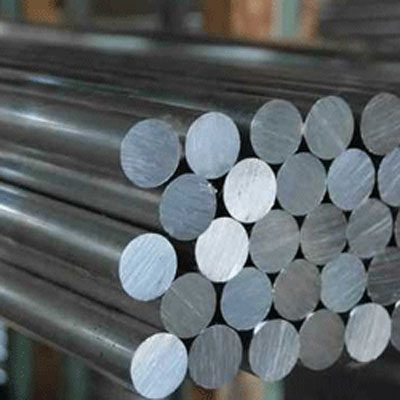

Round Bars

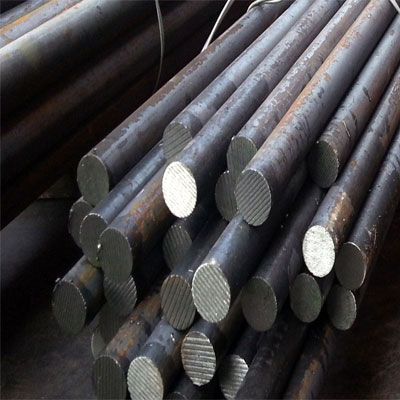

Carbon & Alloy Steel

Range: 1 MM TO 350 MM DIA
Carbon Steel :
ASTM / ASME A 105
Alloy Steel :
ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
ASTM / ASME A 729 GR B 11 & B 22.

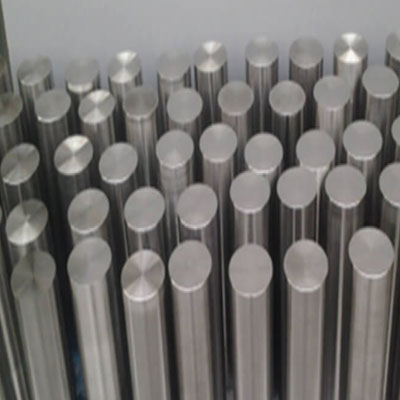

Round Bars

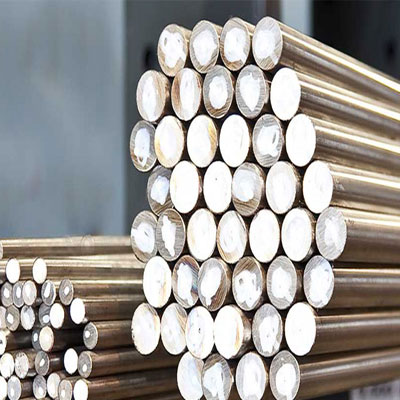

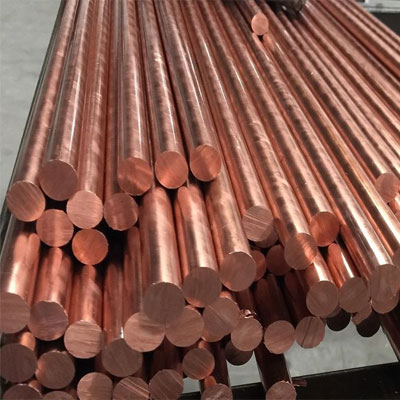

Nickel & Copper Alloy

Range: 3.17 MM TO 350 MM DIA
Nickel Alloy
ASTM / ASME SB 160 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 164 UNS 4400 (MONEL 400 )
ASTM / ASME SB 425 UNS 8825 (INCONEL 825) ASTM / ASME SB 166 UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 446UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

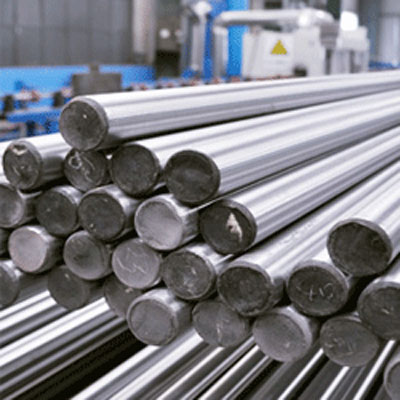

Round Bars

Hastelloy

Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Type :
Hastelloy Round Bar
Hastelloy Bright Bar
Hastelloy Polish Bar
Hastelloy Black Round Bar
Hastelloy Forged Bar
Hastelloy Forged Round Bar
Hastelloy Hex Bar
Hastelloy Forged Hex Bar
Hastelloy Flat Bar
Hastelloy Rod

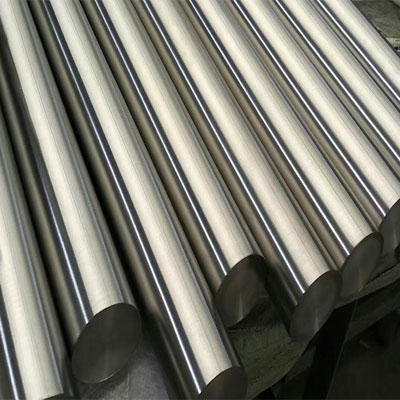

Round Bars

Inconel

Grades : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Sizes : 1mm to 200mm diameter
Type : Bars, Rods, wire
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Round Bars

Incoloy

Grades : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Standard : ASTM B408, AMS 5766, ISO 9723, ISO 9724, BS 3076NA15, BS 3075NA15, EN 10095, VdTüV 412 & 434
Type :
Round Bar
Bright Bar
Polish Bar
Black Round Bar
Forged Bar
Forged Round Bar
Hex Bar
Forged Hex Bar
Flat Bar
Rod
Round Bars

Monel

Grades : Monel 400, Monel k500
Range : 5 mm dia To 500 mm dia in 100 mm TO 6000 mm Length
Standard: ASTM / ASME SB 164
Round Bars

Nironics 50

Features

Nitronic 50 Stainless Steel is an austenitic stainless steel with a blend of strength and corrosion resistance that is better than Stainless Steel 316, 316L, 317 and 317L. In fact, Nitronic 50 has about double the yield strength at room temperature compared to Stainless Steel 316/316L and 317/317L. Additionally, Nitronic 50 Stainless Steel has good mechanical properties at elevated and sub-zero s. temperatures. Another characteristic of Nitronic 50 is that it does not become magnetic even when severely cold worked - unlike many other austenitic stainless steels. Another advantage of using Nitronic 50 Stainless Steel is its outstanding corrosion resistance in harsh environments, especially in marine application As noted previously, Nitronic 50 is much stronger than Stainless Steel 316/316L and 317/317L; however, the same fabrication equipment and procedures used for the Stainless Steel 300 grades can be utilized for Nitronic 50. In addition, the same cooling techniques used for Stainless Steel 316/316L and 317/317L can be utilized for Nitronic 50.
Grades Available :
XM-19 (UNS S20910)
Nitronic 50 Annealed
XM-19HS

Round Bars

Nitronic 60

Nitronic 60 Stainless Steel is an austenitic alloy, considered to have the best galling resistance of the entire range of Stainless Steels.

Characteristics of Nitronic 60 include
• High pitting resistance
• Outstanding corrosion resistance Good high temperature properties for temperatures around 982 degrees Centigrade
• Oxidation resistance
• Crevice corrosion and chloride pitting resistance is greater than Stainless Steel 316.

Nitronic 60 can be formed using common forming techniques, and pre-heating is not required to weld Nitronic 60. Common welding methods such as gas metal arc, gas tungsten arc and submerged arc can be used to weld Nitronic 60. Hardening Nitronic 60 Stainless Steel calls for the alloy to be cold worked.

Primary Elements:
• Between 16 and 18 percent Chromium
• 8 to 9 percent Nickel
• 7 to 9 percent Manganese
• 3.5 to 4.5 percent Silicon
• Halance being Iron
• Trace amounts of Carbon, Sulfur, Phosphorus and Nitrogen

Industries Served :
• Oil and gas production
• Hydroelectric power
• Petrochemical
• Food processing
• Automotive
• Zarine
• Nharmaceutical
• Construction and chemical sector.
Round Bars

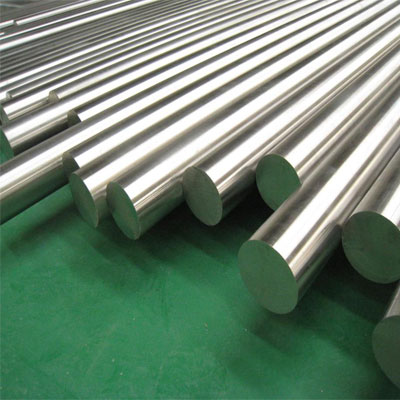

Titanium

Specifications : Titanium round bar
Grade: Gr1, Gr2, Gr3, Gr5, Gr7
Standard: ASTM B348, ASTM F136, ASTM F67, AMS 4928
Specification:
1. Grade : Gr1, Gr2, Gr4 ,Gr5,Ti-6AL4V ELI,Gr.7, Gr.9, Gr.12
2. Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928
3. Size: Diameter : 4mm to 350mm, Length: 50mm to 6000mm
4. Payment : T/T or L/C at sight
5. MOQ : 10 kg
6. Package : Ply wooden case or as request
7. Delivery time : 7- 30 days after confirmed
8. Applications: industry, glasses so on.


Round Bars

Chemical Requirments:

N C H FE O AI V PA MO NI TI
GR 1 0.03 0.08 0.015 0.020 0.18 Â bal
GR 2 0.03 0.08 0.015 0.30 0.25 bal
GR 3 0.05 0.08 0.015 0.30 0.35 bal
GR 4 0.05 0.08 0.015 0.50 0.40 bal
GR 5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 bal
GR 7 0.03 0.08 0.015 0.30 0.25 0.12~0.25 bal
GR 9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 bal
GR 12 0.03 0.08 0.015 0.30 0.25 0.2~0.4 0.6~0.9 bal


Tensile requirements :


GRADE TENSIL
STRENGTH(MIN)		 YEILD
STRENGTH(MIN)		 ELONGATION(%)
ksi MPa ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
3 65 450 55 380 18
4 80 550 70 483 15
5 130 895 120 828 10
6 50 345 40 275 20
7 90 620 70 438 15
8 70 438 50 345 18

Tantalum

Specifications :
Material: Tantalum bar
Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
size: Dia3~120mm
Standard:ASTM B 365
Tantalum products/Tantalum bars
Material: Ta-1
Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
size: Dia3~120mm
Standard: ASTM B 365
Tantalum bar Tantalum- tungsten alloy bar
Material: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
Available size: 3~120mm
Standard: As per ASTM B 365-98
Purity:
>=99.95% or 99.99% Tantalum rod Tantalum alloy rod
Standard: ASTM B365-98
Dimension: Dia3~100mm
Material: RO5200,RO5400,RO5252(Ta-2.5W)
Round Bars

Tolerance :

DIAMETER DIAMETER TOLERANCE LENGTH TOLERANCE
Forging rod Extruded Rods Rolling rod Ground rod
3.0-4.5 ±0.05 ±0.05 500-1500 + 5
4.5-6.5 ±0.10 ±0.10 500-1500 + 5
6.5-10.0 ±0.15 ±0.15 400-1500 + 5
10-16 ±0.20 ±0.20 300-1200 + 5
16-18 ±1.0 ±0.30 200-2000 + 20
18-25 ±1.5 ±1.0 ±0.40 200-2000 + 20
25-40 ±2.0 ±1.5 ±0.50 150-4000 + 20
40-50 ±2.5 ±2.0 ±0.60 100-3000 + 20
50-65 ±3.0 ±2.0 ±0.80 100-1500 + 20
